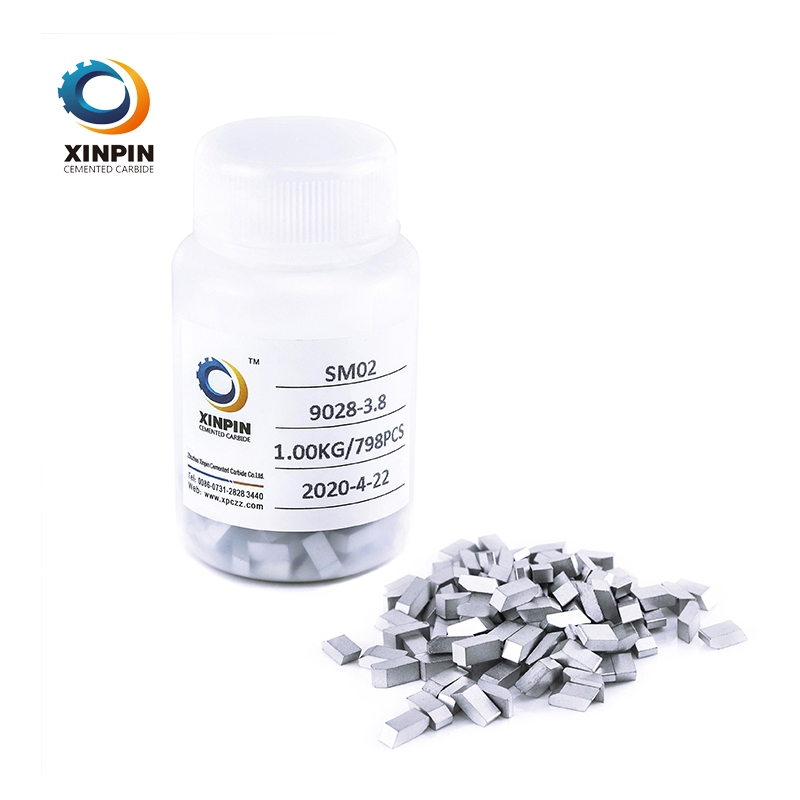

Carbide saw tips

Carbide cutting tool/Saw Tips YG6 YG8 K5 K10 K20 K30 YG6

Material: WC fine powder+CO fine powder
Usage: Carbide Tipped Circular Saw Blade Bandsaw blade
Grade: Woodcutting,Aluminumcutting,Steelcutting
Surface: Grey smooth polished
Dimension: 1000 dimensions available
MOQ: 5KG
Delivery: standard size in a week, customized size with 15-20 days
Advantage: Easy-brazing in a short heating time

    Woodworking Machinery Parts Saw Blade Carbide Teeth/ Saw Cutter Tips

    Product Description

     We, XINPIN, as an ISO9001 certified manufacturer, specialize in producing high & stable cutting-performance tungsten carbide items. Our Carbide saw tips, carbide strips, carbide various woodworking blades, they are  very well-demanded in Brazil, Russia, Turkey, Korea, Japan India and as well as yours, with the moderate price and fast delivery.

    A large variety of grade and dimension are  available for different application, like wood, aluminium, copper or steel working, customized design is also welcomed.



    Material: 100% fresh raw material : WC. CO, TIC, TAC

    GRADE: YG6 YG8 K10 K20 K30

    Size: standard size &customized size available

    Surface treatment: nickel coating,sandblasting,polishing,tumbling

    Application: softwood, hardwood, chipboard, HDF&MDF,  Plywood, laminated, non-ferrous etc

    Processing type: sawing

    Machine type:circular panel saw,scoring saw,Multi-ripping saw,band saw etc

    Sample: <0.5kg, standard size available



    Features of our saw tips
    -High stability thanks to 100% fresh raw material
    -Ideal balance between wear and impact resistance, sharp and wearable,no broken tooth
    -Big range of sizes and grades, free mould for customized dimension
    -Manufactory price and ISO certified quality
    -Smooth surface, easy to welding



    GRADE PROPERTIES Recommended For Cemented Carbide Saw Tips

    GRADES  CHART_01GRADES  CHART_02



    Tungsten Carbide Saw tips For recycle-old wood &Plywood Sawing

    Grade

    Density

    Hardness

    T.R.S*



    Recommended cutting applications

    g/cm3

    HRA

    N/mm(MPa)

    SM07

    14.8-15.0

    93.5

    2700

    For Solidwood, Plywood, Non-ferrous metal etc                        (Sharp-edged for high-pure board)

    SM09

    14.6-14.8

    92.7

    2700

    For Solidwood, Plywood, Plastic, Glass etc                                    (Sharp-edged & nail-resistance)

    XF5

    14.9-15.1

    91.8

    2600

    For Solidwood, Recycle-old wood, Non-ferrous metal etc                    (Sharp-edged & nail-resistance, special for timber with many impurities)

    XK15

    14.8-15.0

    91.2

    2800

    For Solidwood, recycle-old wood etc       (Nail-resistance, special for timber with many impurities)







    Tungsten Carbide Saw tips For Copper, Aluminium Non-ferrous sawing

      Grade

    Density

    Hardness

    T.R.S*

       Recommended cutting applications

    g/cm3

    HRA

    N/mm(MPa)

    SM05

    15.0-15.2

    94.3

    2500

    16"-18"high-quality Saw blade for bridge-cut aluminum and aluminium door, window etc

    SM06

    14.9-15.1

    94.0

    2600

    16"-18"high & medium quality Saw blade for bridge-cut aluminum and aluminium door, window etc

    SM07

    14.8-15.0

    93.7

    2700

    8"-14" high & medium quality Saw blade for copper and aluminum etc

    SM09

    14.7-14.9

    93.0

    2700

    8" high quality Saw blade for copper and aluminum;  8"-14" high & medium quality Saw blade for aluminium bar & aluminium extrustion profile

    XK20

    14.6-14.8

    90.0

    >2500

    7"-10" Economical Saw blade for aluminum,copper etc





    A large varity of Dimension available, customzied design is also welcome.
