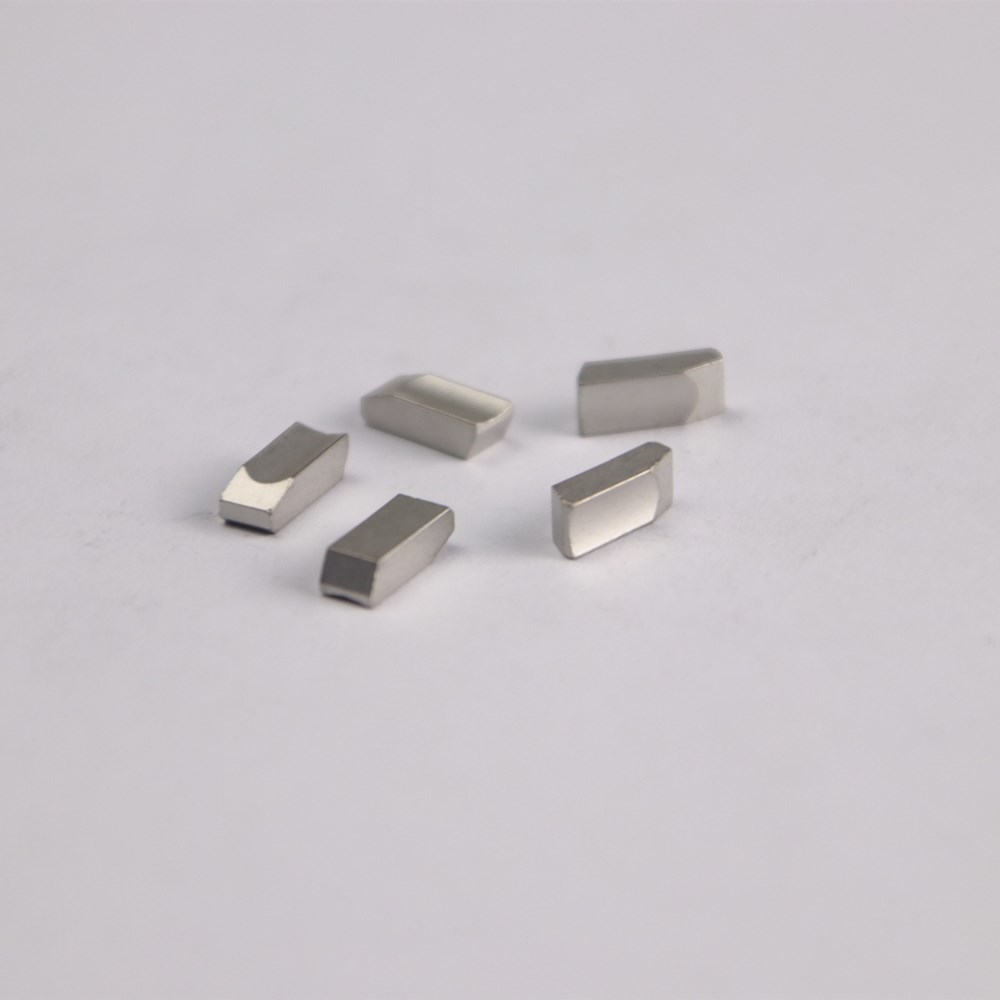

Woodworking Machinery Parts Saw Blade Carbide Teeth/ Saw Cutter Tips
We, XINPIN, as an ISO9001 certified manufacturer, specialize in producing high & stable cutting-performance tungsten carbide items. Our Carbide saw tips, carbide strips, carbide various woodworking blades, they are very well-demanded in Brazil, Russia, Turkey, Korea, Japan India and as well as yours, with the moderate price and fast delivery.
A large variety of grade and dimension are available for different application, like wood, aluminium, copper or steel working, customized design is also welcomed.
Material: 100% fresh raw material : WC. CO, TIC, TAC
GRADE: YG6 YG8 K10 K20 K30
Size: standard size &customized size available
Surface treatment: nickel coating,sandblasting,polishing,tumbling
Application: softwood, hardwood, chipboard, HDF&MDF, Plywood, laminated, non-ferrous etc
Processing type: sawing
Machine type:circular panel saw,scoring saw,Multi-ripping saw,band saw etc
Sample: <0.5kg, standard size available
| Features of our saw tips |
| -High stability thanks to 100% fresh raw material |
| -Ideal balance between wear and impact resistance, sharp and wearable,no broken tooth |
| -Big range of sizes and grades, free mould for customized dimension |
| -Manufactory price and ISO certified quality |
| -Smooth surface, easy to welding |
GRADE PROPERTIES Recommended For Cemented Carbide Saw Tips
Tungsten Carbide Saw tips For recycle-old wood &Plywood Sawing
|
Grade |
Density |
Hardness |
T.R.S* |
Recommended cutting applications |
|
g/cm3 |
HRA |
N/mm2 (MPa) |
||
|
SM07 |
14.8-15.0 |
93.5 |
≥2700 |
For Solidwood, Plywood, Non-ferrous metal etc (Sharp-edged for high-pure board) |
|
SM09 |
14.6-14.8 |
92.7 |
≥2700 |
For Solidwood, Plywood, Plastic, Glass etc (Sharp-edged & nail-resistance) |
|
XF5 |
14.9-15.1 |
91.8 |
≥2600 |
For Solidwood, Recycle-old wood, Non-ferrous metal etc (Sharp-edged & nail-resistance, special for timber with many impurities) |
|
XK15 |
14.8-15.0 |
91.2 |
≥2800 |
For Solidwood, recycle-old wood etc (Nail-resistance, special for timber with many impurities) |
Tungsten Carbide Saw tips For Copper, Aluminium Non-ferrous sawing
|
Grade |
Density |
Hardness |
T.R.S* |
Recommended cutting applications |
|
g/cm3 |
HRA |
N/mm2 (MPa) |
||
|
SM05 |
15.0-15.2 |
94.3 |
≥2500 |
16"-18"high-quality Saw blade for bridge-cut aluminum and aluminium door, window etc |
|
SM06 |
14.9-15.1 |
94.0 |
≥2600 |
16"-18"high & medium quality Saw blade for bridge-cut aluminum and aluminium door, window etc |
|
SM07 |
14.8-15.0 |
93.7 |
≥2700 |
8"-14" high & medium quality Saw blade for copper and aluminum etc |
|
SM09 |
14.7-14.9 |
93.0 |
≥2700 |
8" high quality Saw blade for copper and aluminum; 8"-14" high & medium quality Saw blade for aluminium bar & aluminium extrustion profile |
|
XK20 |
14.6-14.8 |
90.0 |
>2500 |
7"-10" Economical Saw blade for aluminum,copper etc |
A large varity of Dimension available, customzied design is also welcome.
Solid standard export package like following option, customzied design is also welcomed.
